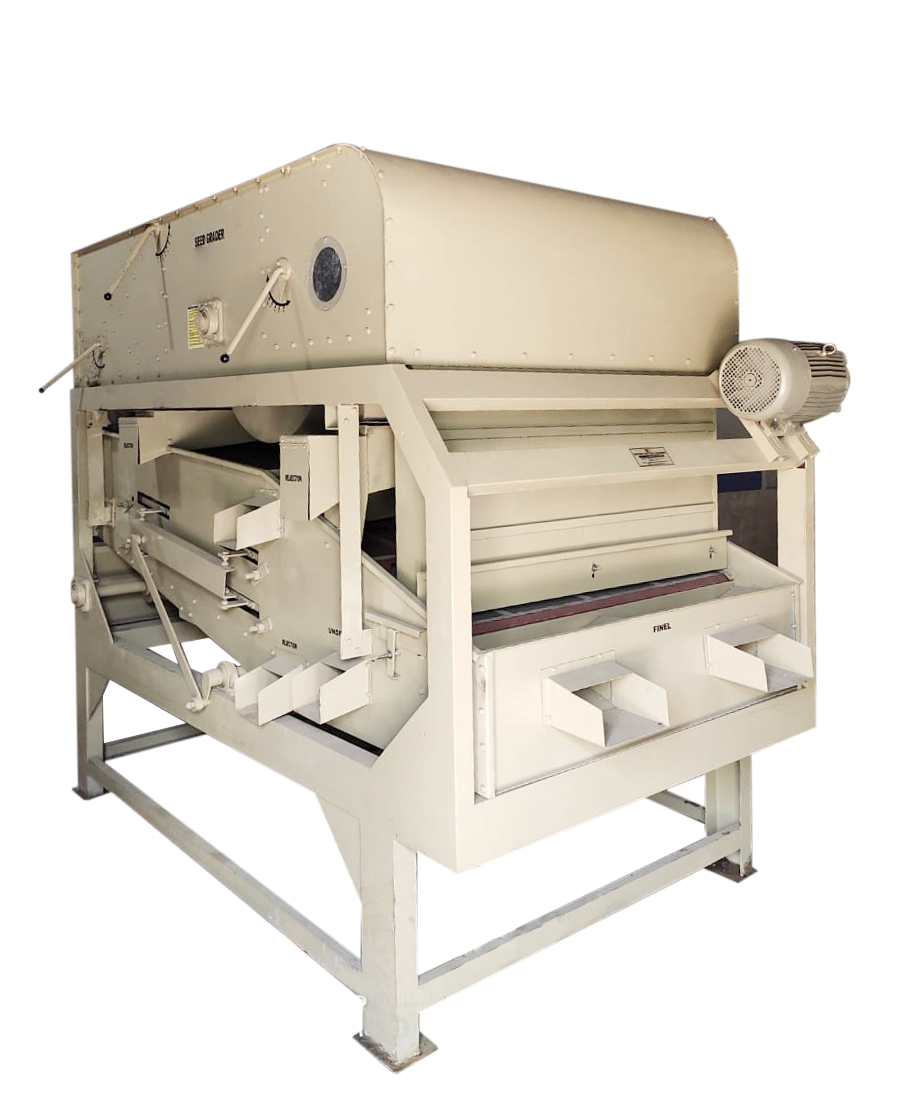

Gravity Seed Grader Machine
Gravity Seed Grader (also known as a Gravity Separator or Specific Gravity Separator) is an advanced seed processing machine used to separate seeds or grains based on their specific gravity (density differences). It is widely used in the agriculture and seed processing industries to ensure the removal of light, immature, or insect-damaged seeds, providing high-purity seed output. New Tech Agro Industries Equipment is one of the leading Gravity Seed Grader Machine Manufacturers in India.
Features :
- Corrosion free screen mode up of MS.
- Separation is carried out in different stages.
- Designed with sound and dust Sroof technology for Pollution control integrated comSact unit.
- JSW, Tata Steel brand MS Sheet
- 10 14 gauge sheets
- Bearing make SKF/NRB/NTN etc.
- Motor make Crompton, ABB, etc.
| Model No. | NTA-G53 | NTA-G63 | NTA-G73 | NTA-G103 |
|---|---|---|---|---|
| Capacity | 1-1.5TPH | 2-2.5TPH | 3-4TPH | 4-5TPH |
| No. of screen | Two/Three | Two/Three | Two/Three | Two/Three |
| Top Screen | Scalping | Scalping | Scalping | Scalping |
| Middle &bottom Screen | Grading & under size | Grading & under size | Grading & under size | Grading & under size |
| Screen Size | 65cm*150cm | 95cm*150cm | 100cm*200cm | 120cm*200cm |
| Power | 5HP | 5HP | 6.5HP | 7.5HP |
| No. of Aspiration | One/Two | Two | Two | Two |
| Screen Cleaning device | Balls & Nylon Brush | Balls & Nylon Brush | Balls & Nylon Brush | Balls & Nylon Brush |
| Dimension (L*W*H) | 2460 x 1585 x 2290mm | 3100 x 1810 x 2380mm | 3150 x 1980 x 2590mm | 3120 x 2125 x 2585mm |
Gravity Seed Grader Full Details
Function:
A gravity seed grader separates particles (seeds or grains) of the same size but different weights. Heavier, high-quality seeds are separated from lighter, inferior ones.
Working Principle:
The working principle of a gravity separator is based on air flow, vibration, and gravity.
1). Feeding: Seeds are fed uniformly onto a vibrating deck.
2). Air Suction: Air is blown through the deck from bottom to top, lifting lighter particles.
3. Vibration & Inclination: The deck vibrates and is tilted, causing seeds to move in different directions:
4. Discharge: Different grades are collected separately at multiple outlets.
Applications:
1. Seed Cleaning Plants
2. Grain Processing Units
3. Spices & Pulses Grading
4. Agro-based Industries
5. Oilseed Processing
Commonly Processed Seeds:
1. Wheat, Paddy, Maize
2. Mustard, Groundnut
3. Beans, Pulses
4. Sunflower, Sesame
5. Coriander, Cumin, etc.
Advantages:
1. High separation accuracy
2. Removes diseased, immature, insect-damaged seeds
3. Enhances seed germination and crop yield
4. Customizable for various seed types
5. Reduces wastage in further processing
